AC Drives x2000 series
VFDs Range covers from 0.1 to 450kW in 1Ph. & 3Ph.
230V & 415V
HD ratings designed for 50°C ambient temperature
Built-in PLC functionality
Application specific models & optional accessories
Built-in RS485 modbus Port with various other commu-nication options
New series with DIN rail mounting
Default conformal coating complying to IEC-60721-3-3
The Fx2000 generates powerful performance and meets your precise needs through several features: superior V/F control, V/F PG, slip compensation and sensorless vector control as well as closed-loop vector control.
The Fx2000 is perfectly suited for the toughest, most complex applications – cranes, plastic winders, high-speed elevators, cement kilns, crushers … and more. It handles loads up to 375 kW – HD /450 kW – ND, and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterize India’s industrial environment.
Main Features
Range: 0.75kW to 375kW (HD)
V/F control, V/F with PG, Slip compensation, Sensorless Vector Control, Close Loop Vector Control
Built-in Macro for Crane
Starting Torque: 250% at OHz for Closed Loop
Optional Smart PLC
Optional Synchronization card
Droop Control
Conformal Coating complying to IEC 60721-3-3 class 3C2 (max) and class 3C3 (avg)
Built-in RS485 Modbus RTU Communication
Applications

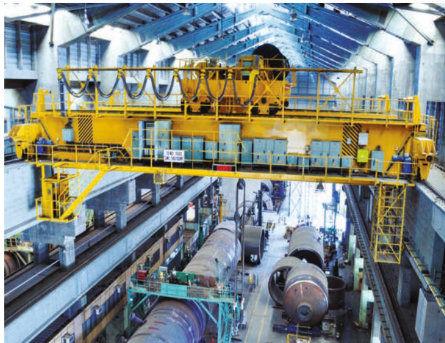

Crane Hoist
Crane Control LT/CT

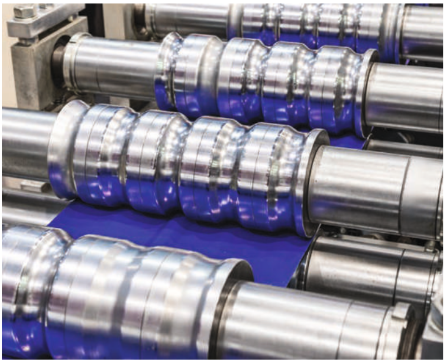

Winders
Wire Drawing
Plastic & Textile Machines
Conveyors
Compressors
Extruders
Fan
Pump
