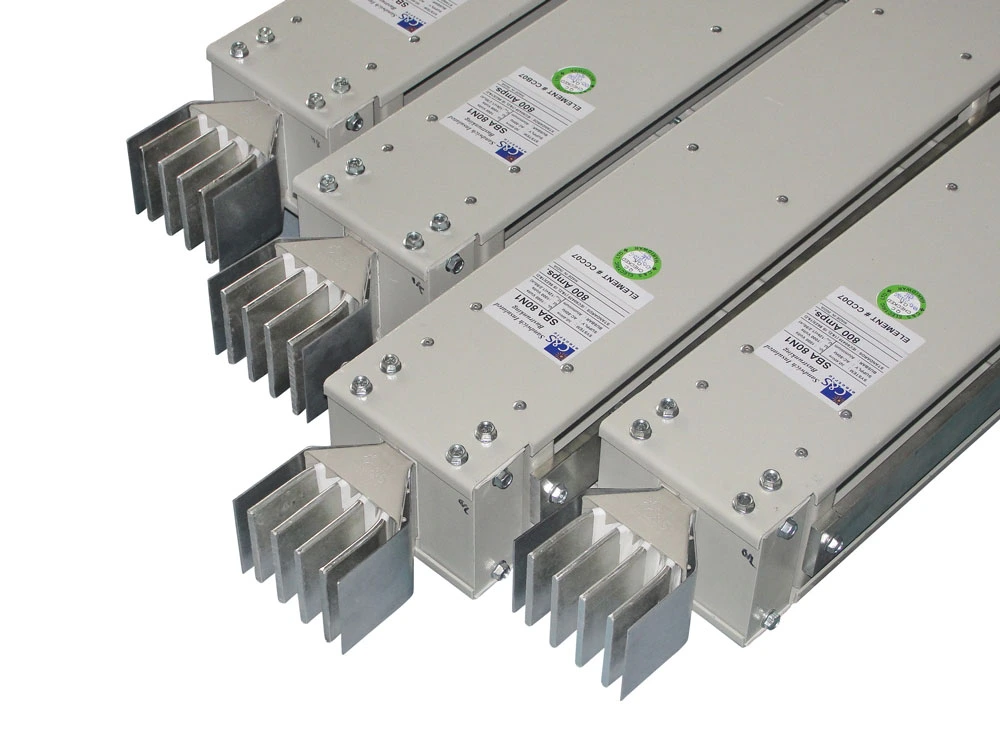

Sandwich Busbar Trunking System
• Current Rating: 400A to 6300A (Copper)
250A to 5000A (Aluminium)
• Rated Insulation voltage: 1100V

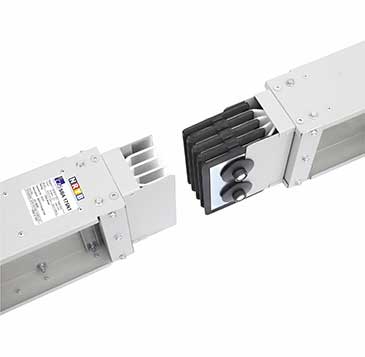

• Joints block with Maintenance-free Nut
• Enclosure: GI or Aluminium

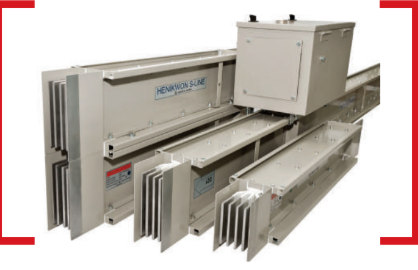

• Plug-in boxes with safety interlock
• Robust, safe & reliable solution
– Class-F insulation with RoHS compliance & UL certification
– Ingress protection up to IP66
– Certified for Seismic Zone-V


A Sandwich Busbar Trunking System (SBTS) is a compact, modular, and highly efficient electrical distribution system used for transmitting electrical power over distances within buildings, industries, and infrastructure. The term “sandwich” refers to the arrangement where multiple copper or aluminum conductors are enclosed between insulating layers, offering both electrical efficiency and safety.
